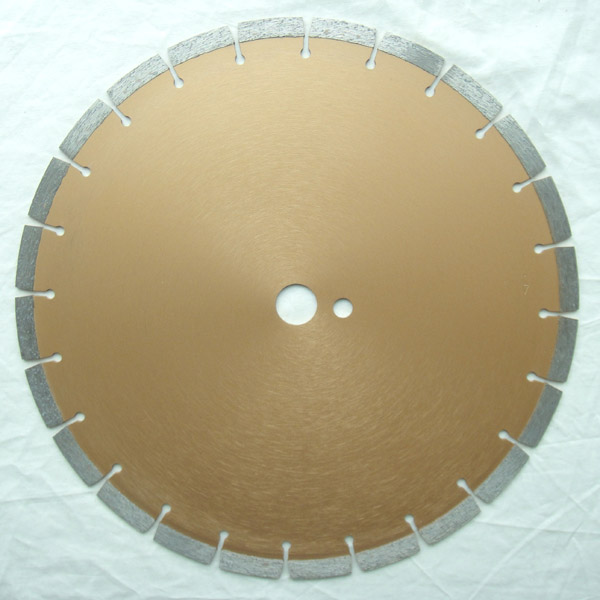

Diamond Saw Blades. Sintered, general building materials cutting, 12mm segment high.

Diamond Saw Blades. Sintered, general building materials cutting, 12mm segment high.
The Diamond blades are designed in higher segment up to 12mm high, which provide the blades in longer working life than normal.
The blades are made by high press sintered equipments that blades can guarantee the segments without loss.
Three or more composition design of segments (bond & diamond grit) provide the blades in different grade to meet different market.
The blades are recommended to cut Concrete Products, Block, Brick, Paviors, Slabs, Pile top, Floor Beam, Lintels, Medium hard stone, Facing brick. Light reinforced concrete, Granite, Marble, Sandstone, and other medium hard building materials.
REMARK: Other Specifications & Sizes are available upon request. Bond & Diamond is adjustable upon request to cut specific materials.
Suitable: Dry cutting.

      Size and Specifications:

Diameter(D)

Arbor (H)

Segments Size(mm)

Art.
Code

Inch

mm

mm

Width(T)

Height(W)

12”

300

20/22.23/25.4/50

3.2

8.0

SGS 300

14”

350

22.23/25.4/50

3.4

8.0

SGS 350

16”

400

22.23/25.4/50

3.6

8.0

SGS 400

12”

300

20/22.23/25.4/50

3.2

10.0

SGN 300

14”

350

22.23/25.4/50

3.4

10.0

SGN 350

16”

400

22.23/25.4/50

3.6

10.0

SGN 400

12”

300

20/22.23/25.4/50

3.2

12.0

SGH 300

14”

350

22.23/25.4/50

3.4

12.0

SGH 350

16”

400

22.23/25.4/50

3.6

12.0

SGH 300
