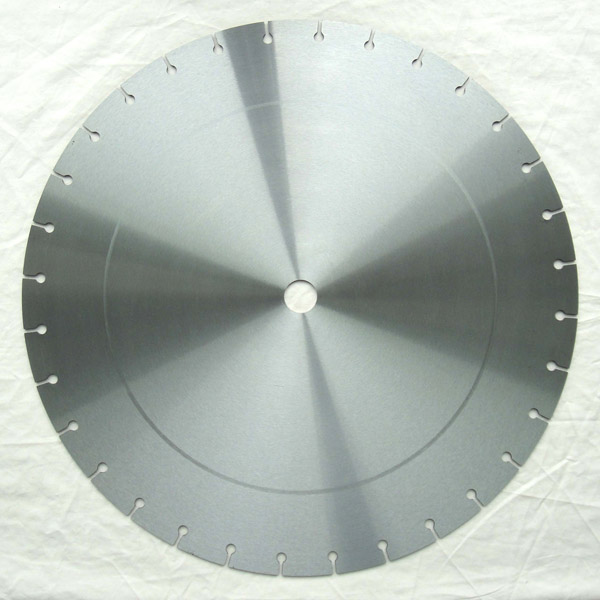

Steel Core Blank (Steel Plate) Body for Diamond Blades

Zhengyang tools produces Steel Core Blank (Steel Plate) Body for Diamond Blades producers.
Quality grade: For brazed weld diamond blades and for laser weld diamond blades.
Bore: Available all size and kind upon request, such as 5/8”, 1”, 20mm, 22.23mm, 25mm, 30mm, 35mm, 50mm, 60mm, 80mm, etc…

Teeth: slot type and steel plate thickness could be adjusted upon request.

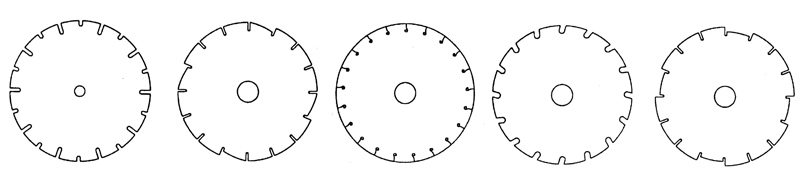

      Types and designs of the Steel Core Blank (Steel Plate) Body:

      Size and Specifications:

CODE

Diamond Blade
Diameter  mm

Steel Core Blank
Diameter mm

Steel core blank thickness (mm)

ZDCB230

230

214

210

1.6

1.8

2.0





ZDCB250

250

234

230

1.6

1.8

2.0





ZDCB300

300

284

280

1.8

2.0

2.2





ZDCB350

350

334

330

2.0

2.2

2.4





ZDCB400

400

384

380

2.2

2.4

2.6

2.8

3.0

ZDCB450

450

434

430

2.4

2.6

2.8

3.0



ZDCB500

500

484

480

2.6

2.8

3.0

3.2



ZDCB550

550

534

530

2.8

3.0

3.2

3.4



ZDCB600

600

584

580

3.0

3.2

3.4

3.6



ZDCB650

650

634

630

3.2

3.4

3.6

3.8



ZDCB700

700

684

680

3.4

3.6

3.8

4.0



ZDCB750

750

734

730

3.6

3.8

4.0

4.2



ZDCB800

800

784

780

3.8

4.0

4.2

4.4



ZDCB850

850

834

830

4.0

4.2

4.4

4.6



ZDCB900

900

884

880

4.5

5.0

5.5

6.0



ZDCB1000

1000

984

980

5.0

5.5

6.0

6.5



ZDCB1100

1100

1084

1080

5.5

6.0

6.5

7.0



ZDCB1200

1200

1184

1180

5.5

6.0

6.5

7.0



Remark

Other specifications & sizes are available upon request.
