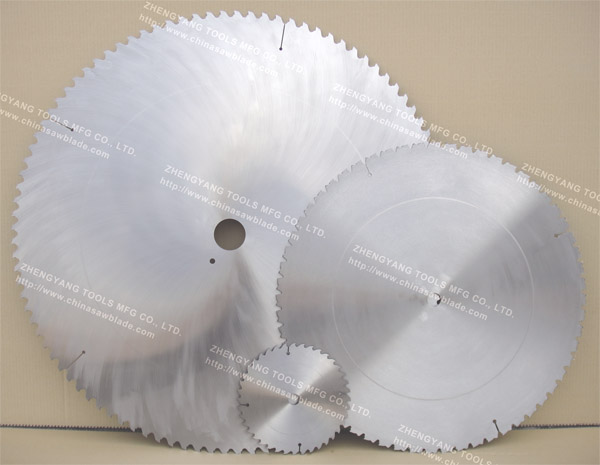

Steel Core Blank (Steel Plate) Body for TCT Circular Saw Blades

Zhengyang tools produces Steel Core Blank (Steel Plate) Body for TCT Circular Saw Blades producers.
Quality grade: For Industrial market.
Bore: Available all size and kind upon request, such as 5/8”, 1”, 20mm, 22.23mm, 25mm, 30mm, 35mm, etc…
Teeth: Teeth number and steel plate thickness could be adjusted upon request.
Hook angle could be adjusted upon request.



      Size and Specifications:

CODE

TCT Blade
Diameter  mm

Steel Core Blank
Diameter mm

Steel core blank thickness (mm)

ZTCB200

200

198

1.4

1.6

1.8

2.0

2.2

ZTCB230

230

228

1.6

1.8

2.0

2.2



ZTCB250

250

248

1.6

1.8

2.0

2.2



ZTCB255

255

253

1.6

1.8

2.0

2.2



ZTCB300

300

298

1.6

1.8

2.0

2.2

2.5

ZTCB305

305

303

1.6

1.8

2.0

2.2

2.5

ZTCB315

315

313

1.6

1.8

2.0

2.2

2.5

ZTCB350

350

348

1.8

2.0

2.2

2.5

2.8

ZTCB400

400

398

2.0

2.2

2.5

2.8

3.0

ZTCB420

420

418

2.2

2.5

2.8

3.0

3.2

ZTCB450

450

448

2.2

2.5

2.8

3.0

3.2

ZTCB455

455

453

2.2

2.5

2.8

3.0

3.2

ZTCB500

500

498

2.5

2.8

3.0

3.2

3.5

ZTCB550

550

548

2.5

2.8

3.0

3.2

3.5

ZTCB600

600

598

2.8

3.0

3.2

3.5

3.8

ZTCB650

650

648

3.0

3.2

3.5

3.8

4.0

ZTCB700

700

698

3.0

3.2

3.5

3.8

4.0

ZTCB750

750

748

3.2

3.5

3.8

4.0

4.2

ZTCB800

800

798

3.5

3.8

4.0

4.2

4.5

ZTCB850

850

848

3.5

3.8

4.0

4.2

4.5

ZTCB900

900

898

3.8

4.0

4.2

4.5

5.0

ZTCB1000

1000

998

4.0

4.5

5.0

5.5

6.0

ZTCB1100

1100

1098

4.5

5.0

5.5

6.0

6.5

ZTCB1200

1200

1198

5.5

6.0

6.5

7.0

8.0

Remark

Other specifications & sizes are available upon request.
